Snorkel for Ford Ranger PK/PJ

Group Ford Snorkel
Min. Order 10 piece
Terms of Payment L/C, Western Union, T/T, Paypal
Update Time 2019-08-10
Item specifics
BrandYOTO
OEMYES
MOQ10 PCS
OrderDealers/ Wholesale Buyer/ Purchasing Agent
Delivery20days
Snorkel for Ford Ranger PK/PJ
Product Features
•Made of High Quality LLDPE Material
•Raised air intake to prevent your engine from ingesting harmful elements
•Increased airflow for your PK 04/2009 - 07/2011 3.0L Diesel and PJ 12/2006 - 03/2009 3.0L Diesel engine
•Water separating air ram design to remove water from the air stream
•Durable and UV stable snorkel and air ram for added strength
•Comprehensive Ford Ranger 4WD Snorkel fitting guide with an accurate template for assisting with installation.
The SFR07A Ford Ranger 4x4 Snorkel is designed to deliver a huge volume of the coolest and cleanest air possible into the stock air cleaner assembly of all PK 04/2009 - 07/2011 3.0L Diesel and PJ 12/2006 - 03/2009 3.0L Diesel  engines.

With the huge air flow demands of each engine in the PK 04/2009 - 07/2011 3.0L Diesel and PJ 12/2006 - 03/2009 3.0L Diesel Ford Ranger, design a snorkel system that raised the air intake to prevent ingesting harmful elements to the vehicles air cleaner.

The genuine  Ford Ranger 4x4 Snorkel body and air ram is manufactured to the highest standards in durable, UV stable, cross linked polyethylene material. In addition, the substantial material wall thickness delivers huge physical strength to ensure that the Ford Ranger snorkel breezes through the toughest off-road conditions on the planet.
SPECIFICATION PARAMETER
Snorkel - Ford Ranger 4x4 Snorkel for PK 04/2009 - 07/2011 3.0L Diesel and PJ 12/2006 - 03/2009 3.0L Diesel
Part Number
Year
Engine
Capacity
Fitment side
Fuel
Size
SFR07A
PK 04/09 to 07/11
WEAT
3.0Litre-I4
Left
Diesel
35*18*135
PJ 12/06 to 03/09
WEAT
3.0Litre-I4
Left
Diesel

*PK Ranger - Special attention required for template installation.

Snorkel Ford Ranger 4x4 Kit - Parts List
ITEM
DESCRIPTION
QTY
1
BODY - Snorkel
1
2
3” AIR RAM ASSEMBLY
1
3
BRACKET - Upper Mounting
1
4
BOLT-HEX 6mm x 1.0mm x 14mm
2
5
SCREW -S/T 4.2mm x 13mm
1
6
BODY CLIP - PLASTIC
4
7
STUD - S/S 8mm x 1.25mm x 25mm O/L
3
8
WASHER -BODY 8mm x 30mm
7
9
NUT - NYLOC 8mm x 1.25mm
7
10
CLAMP - HOSE 50/70mm
7
11
HOSE - FLEXIBLE 63mm ID x 1100mm
2
12
ADAPTOR - AIR ENTRY
2
13
BLANK OFF PLATE - AIR ENTRY
1
14
TEMPLATE
1

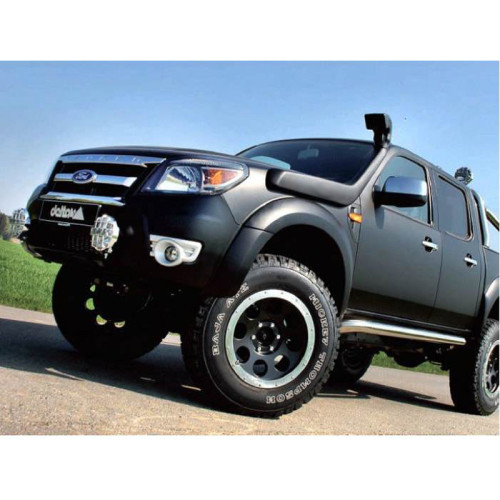

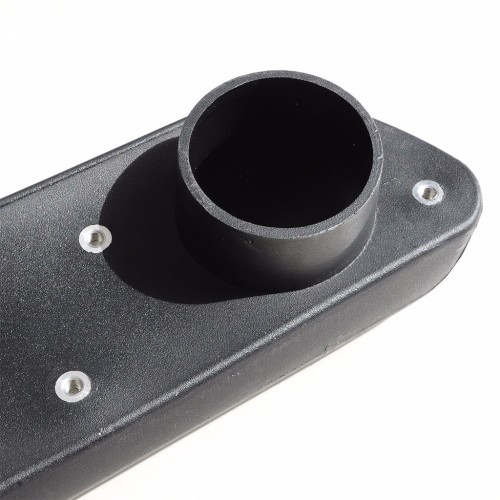

Product Display
